American Recorder Mini Telescopic Microphone with Windscreen

by SMART BRACKET
Save $ 100.00
$ 149.95
$ 49.95
SKU MIC-1286

MINI TELESCOPIC MICROPHONE

  • Pro Grade Broadcast Condenser Mic
  • Switchable Telescopic & Cardioid Polar Patterns
  • Camera Shoe with Built-in Shock Mount
  • Foam Windscreen
  • Headphone Output
  • 2nd Mic Input

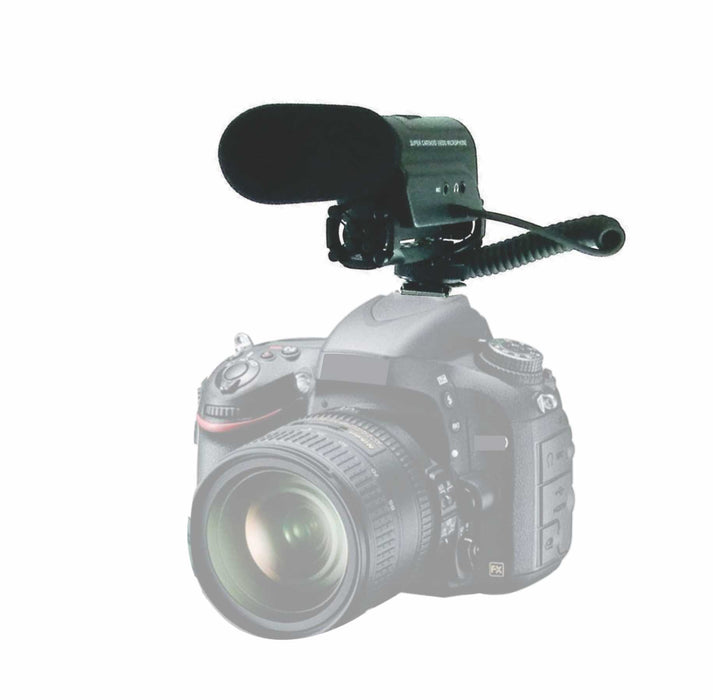

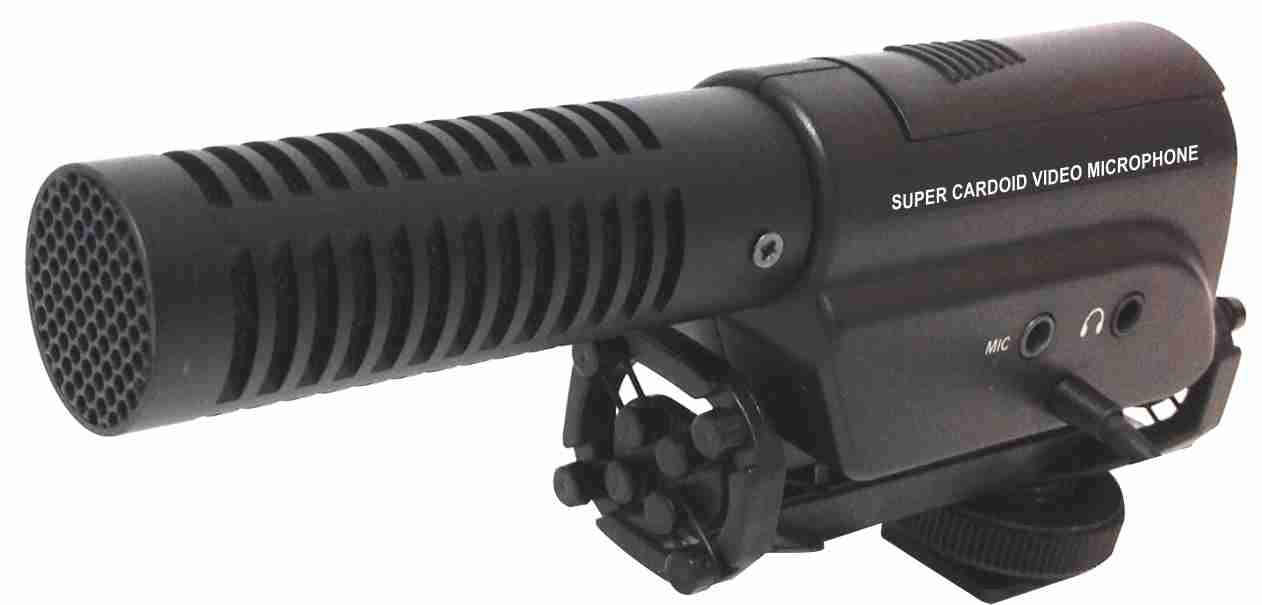

The MIC-0286 is a mini telescopic super-cardioid condenser microphone for DSLR cameras, video recorders and phones/tablets (with proper adapter cable). Built-in microphones as those used in cameras and phones have limited dynamic range and frequency response, causing voices to sound thin and wispy with a high degree of background noise.

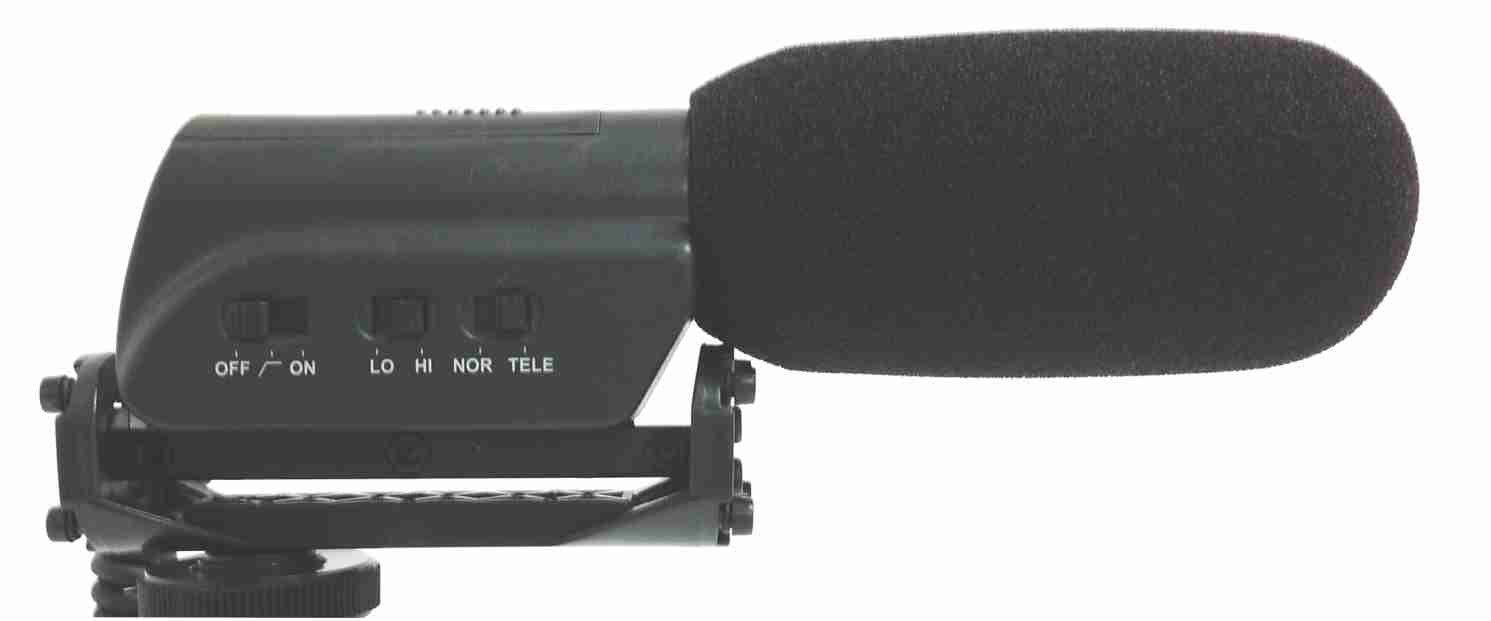

The MIC-0286 has two-mode pattern switch that allows for highly directional sound or for a wide-field area, delivering clear and natural voices and sounds. The foam windscreen will minimize wind noise when shooting outdoors while the built-in shock mount eliminates microphone movement noises during filming. Very lightweight and with a compact size (4 ounces, 6"), it is a high-performance microphone that is packed full of features:

BROADCAST GRADE SOUND -  high quality 1/2" electret element for 20-20K frequency response.  Voices and sounds are reproduced with detail and clarity.

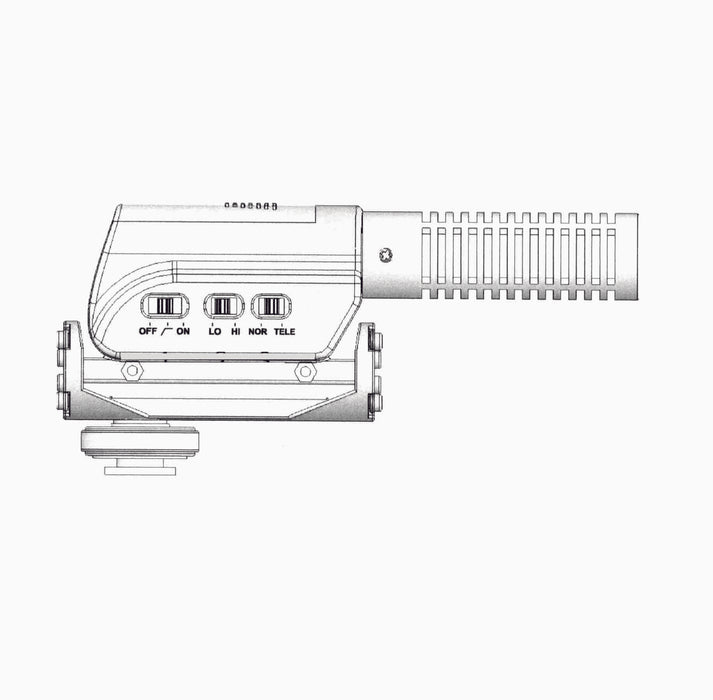

SWITCHABLE PATTERN - Choose between normal sound field coverage (cardioid) for group recording or Telescopic (Super-cardioid) a narrow recording field on specific sound sources up to 25 feet away.

LOW CUT FILTER -  5db@300Hz eliminates excessive low frequencies noises.

OFF-ON SWITCH - Easy to reach side mount OFF/ON switch to conserve battery life.

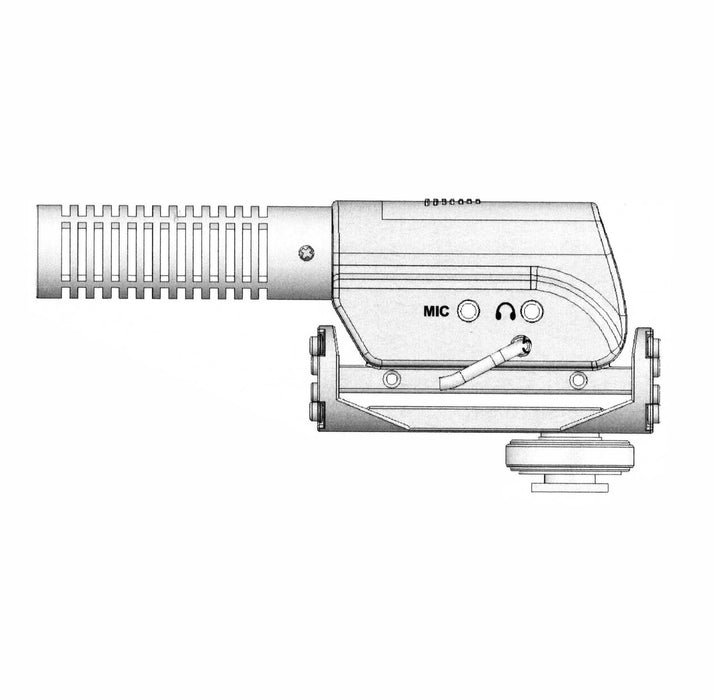

MIC INPUT - 3.5mm input for a secondary microphone.

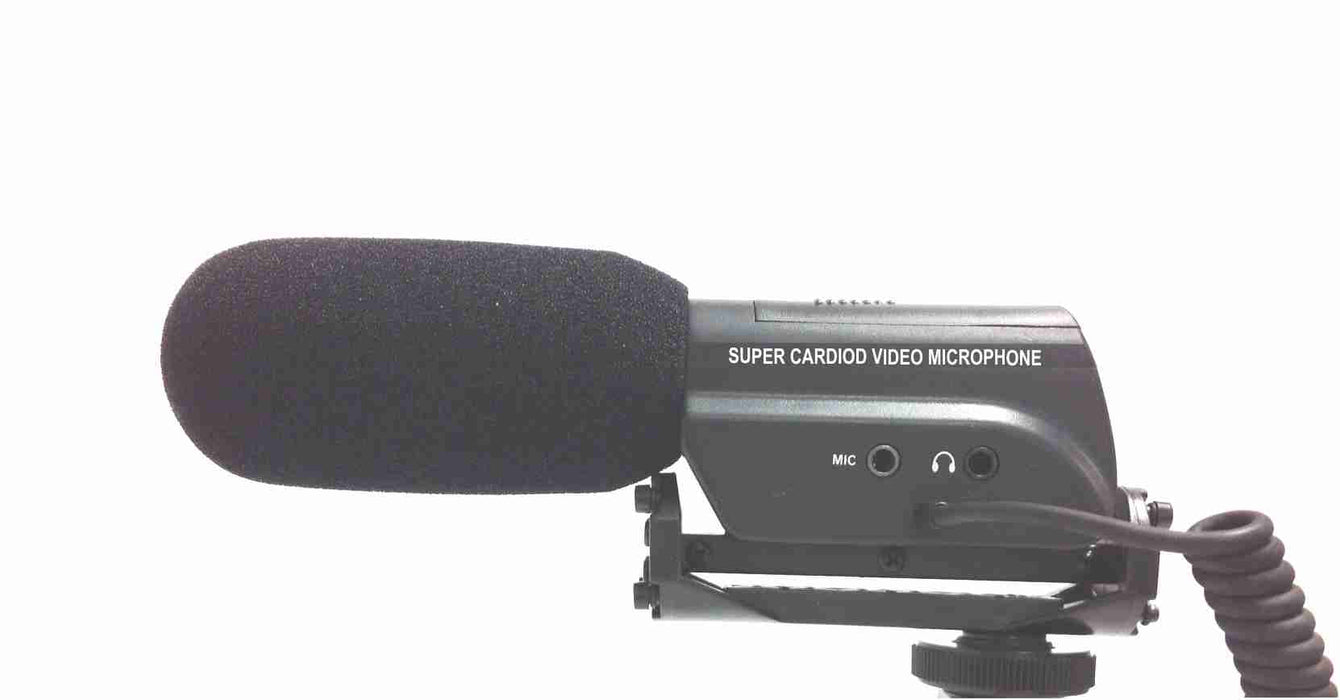

HEADPHONE JACK - Plug in headphones and monitor your sound quality while recording.

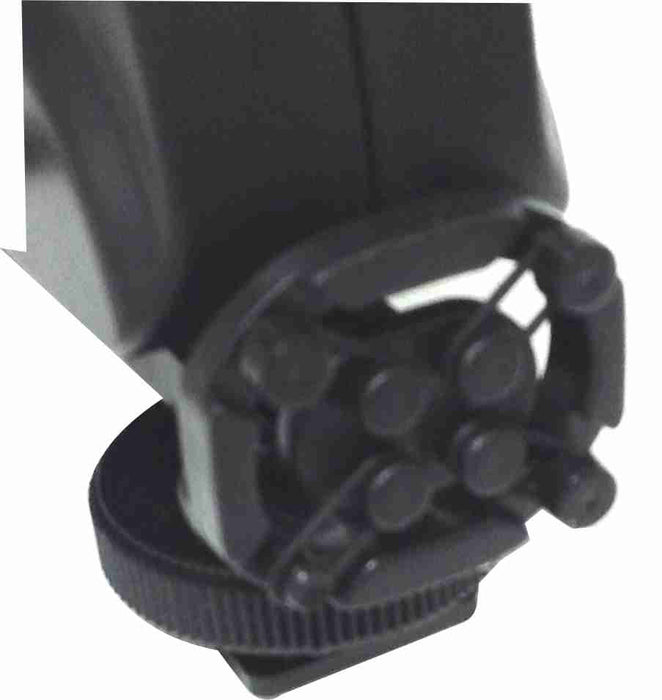

SHOCK MOUNT - Built- in camera shoe shock mount isolates vibrations and movement from the microphone.  The camera shoe mount also has a 1/4"-20 thread hole under the base for additional mounting options.

BATTERY LIFE - requires single 1.5v AA battery, up to 100 hours (not included)

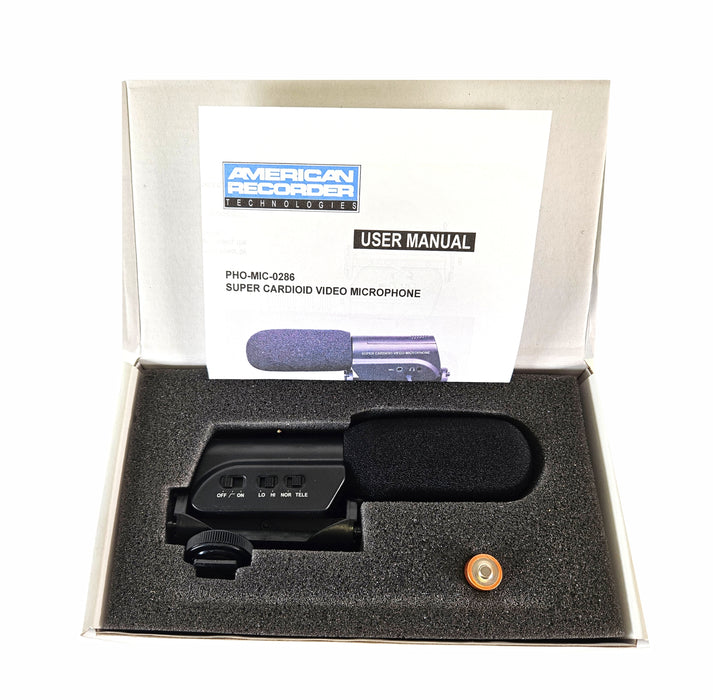

Owners manual for PHO-MIC-0286



SPECIFICATIONS:

PATTERN: Cardioid (NORM) / Supercardioid (TELE)
FREQUENCY RANGE: 20 -20KHz
SENSITIVITY: Cardioid -46dB (0dB=1V/Pa@1KHz)
Supercardioid -36dB (0dB=1V/Pa@1KHz)
LOW CUT FILTER: -5dB @300Hz
OUTPUT IMPEDANCE: 1.5K ohm at high level
600 ohm at low level
POWER REQUIREMENT: 1 AA battery
BATTERY LIFE: approx.100 hours

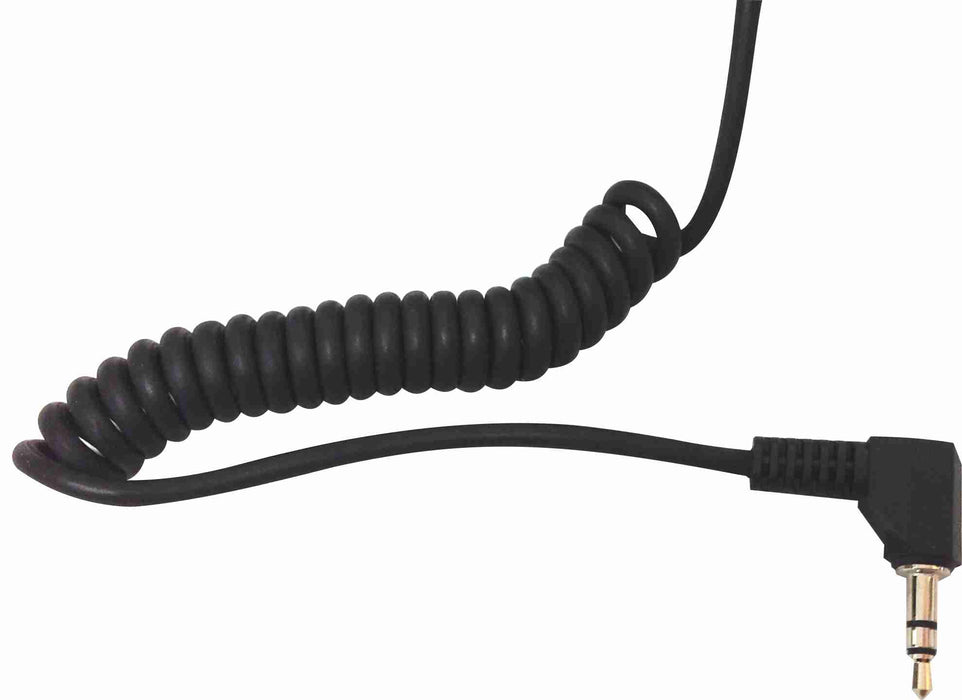

OUTPUT CONNECTOR: 3.5mm stereo plug
MIC INPUT: 3.5mm stereo plug
CABLE: 90cm
DIMENSION(WITH SHOCK MOUNT) (Lx WxH): 14.4 x 3.2 x 6.7 cm
WEIGHT(WITH BATTERY): 113.4g
